Wi-Fi Modules



Module Name & Description

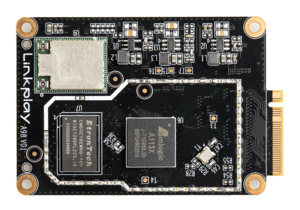

A98/A98L/A98M

All 3 modules of A98 series have the same features.

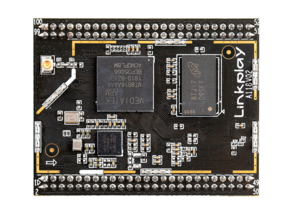

A118

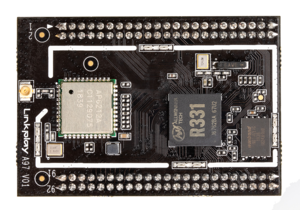

A97L


Processor

Amlogic A113X 1.5GHz quad-core ARM processor

MediaTek MT8516A quad-core ARM Cortex-A35 CPU

Allwinner R328 application processor


wireless standard

IEEE 802.11 b/g/n/ac single band (2.4 GHz, A98L), dual band (2.4GHz and 5GHz, A98), Bluetooth connectivity (BT5.0 with EDR and BLE)

IEEE 802.11b/g/n 2.4 GHz WiFi, and also Bluetooth 5.0 with EDR and BLE

IEEE 802.11b/g/n 2.4 GHz Wi-Fi, and Bluetooth 5.0 with BLE


I/O Interface

USB OTG, I2S, I2C, UART

I2S, I2C, UART

USB, I2S, I2C, UART


Compatible with

Apple AirPlay 2 and Digital Living Network Alliance (DLNA) streaming standards

TBA

Apple AirPlay 2 and Digital Living Network Alliance (DLNA) streaming standards


Audio Format

Hi-Fi audio up to 192KHz, 24-bit with most popular audio formats

TBA

Hi-Fi audio up to 192KHz, 24-bit with most popular audio formats


Multi-Room & Multi-Channel Audio Streaming

Yes

TBA

Yes


Companion App

iOS and Android

Android

iOS and Android


Size

A98/A98L: 62.8mm x 42.0mm
A98M: 50.0mm x 43.3mm

TBA

TBA


Use Cases

Connected speaker, sound bar, & etc.
